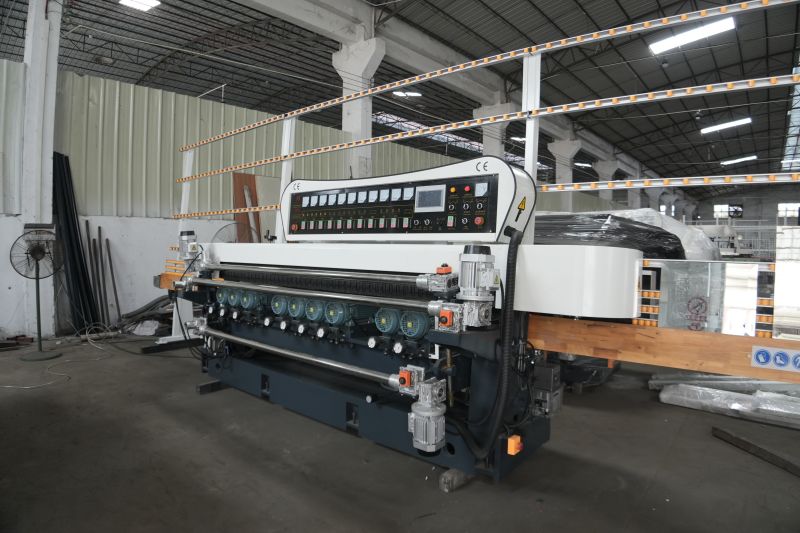

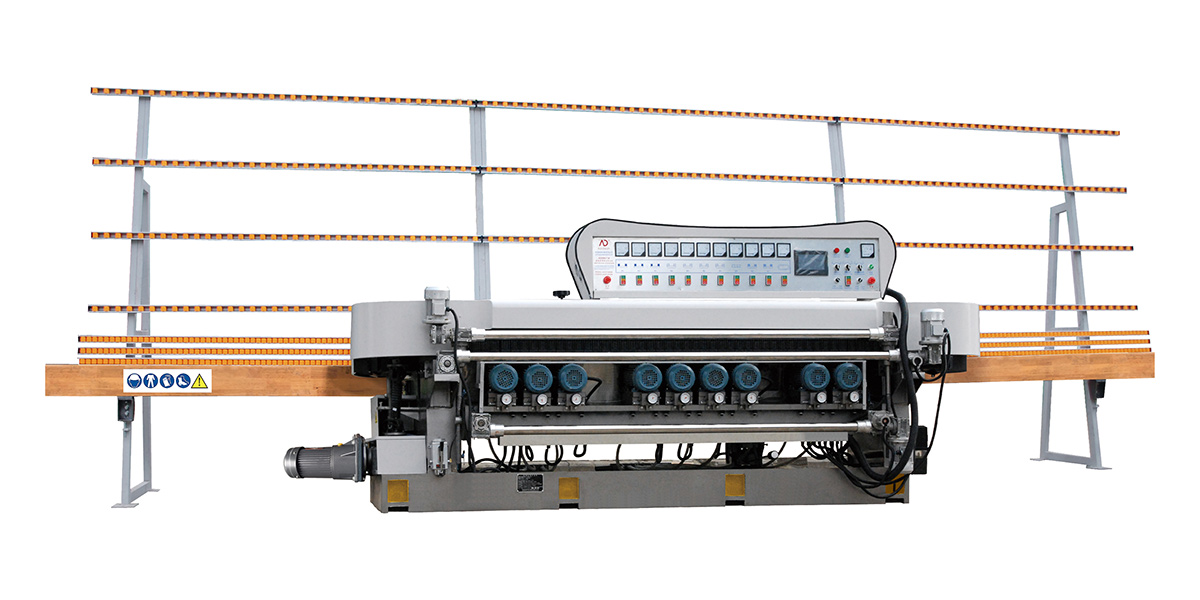

Glass Beveling Polishing Machine is a specialized equipment for glass edge processing, which can accurately grind, chamfer, polish and other treatments on glass edges, achieving smooth, flat and beautiful effects. The device mainly consists of a host, grinding head, transmission system, water circulation system, power control system, and other parts. During work, the glass edge is ground using a high-speed rotating grinding tool, while the transmission system drives the grinding head to reciprocate within a certain range, achieving comprehensive processing of the glass edge. The water circulation system is used to cool grinding tools and remove grinding residues, ensuring machining accuracy and efficiency. The power control system is responsible for the operation and control of the entire equipment, achieving automated operations.

Glass Beveling Polishing Machine Technical Specifications:

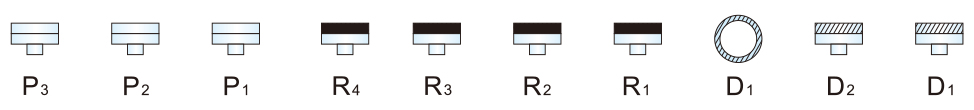

Glass Beveling Polishing Machine Position of Wheels:

Glass Beveling Polishing Machine Features:

1. Safety and intelligent control:

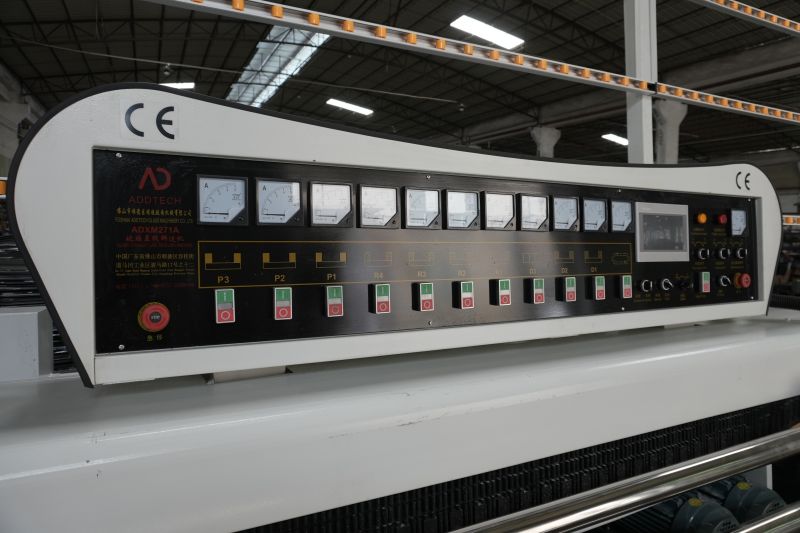

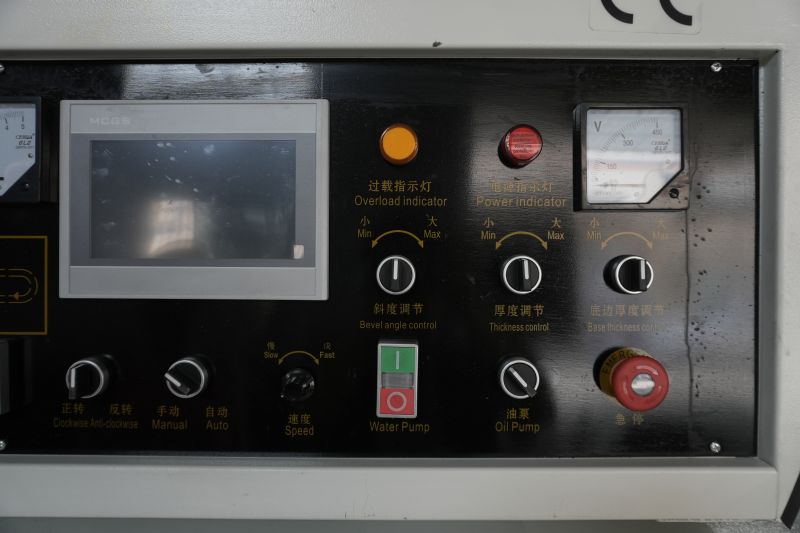

This Glass Beveling Polishing Machine has obtained CE certification and complies with European safety standards, ensuring safety during operation. Equipped with PLC control system and digital display to achieve intelligent operation. The PLC control system can accurately control the machining process, while the digital display displays machining parameters in real-time, such as glass thickness, angle, and height, making the operation more intuitive and convenient.

2. Durable and sturdy structure:

The Glass Beveling Polishing Machine adopts a heavy-duty base and crossbeam, made of cast steel and annealed to enhance its stability and durability. This structural design can withstand high loads and ensure stable performance of the machine during long-term operation.

3. High quality electrical configuration:

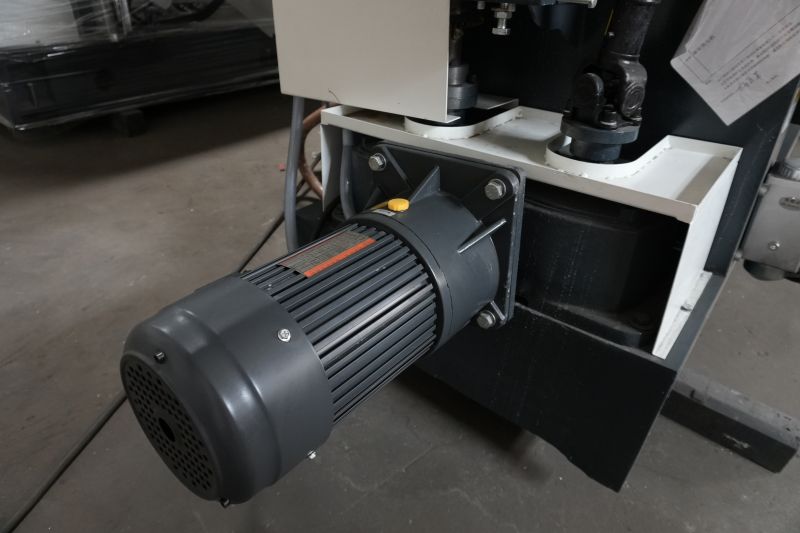

Electrical equipment can be selected from internationally renowned brands such as SIEMENS, Schneider, or Delixi, ensuring the reliability and stability of the electrical system. The motor can be selected from ABB, XINDONGYA, SNY and other brands, with various voltage specifications including 380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, etc., to meet the electrical needs of different countries and regions.

4. Powerful transmission system:

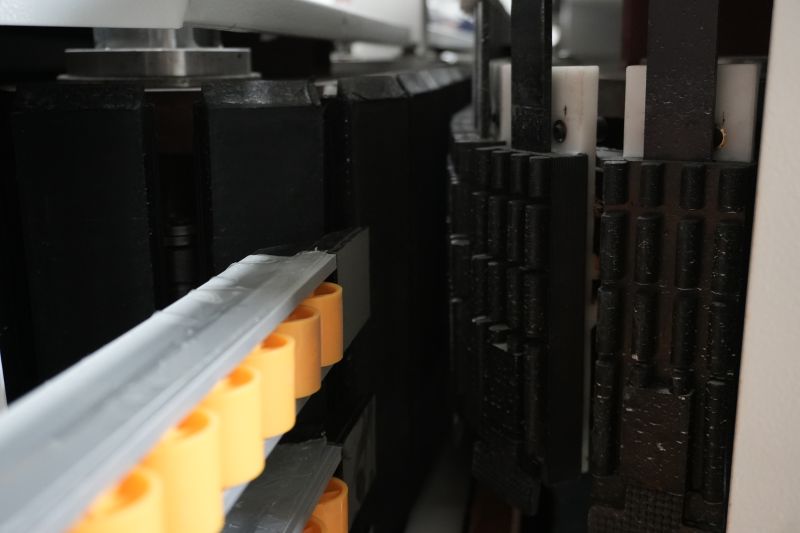

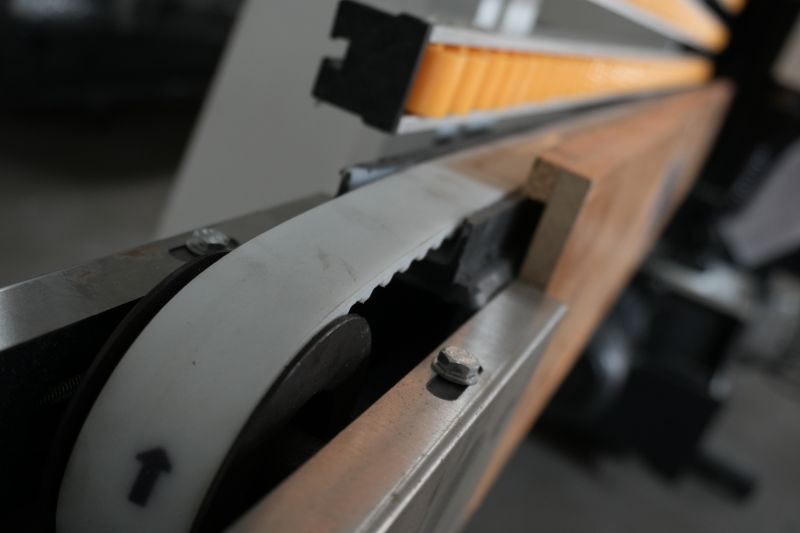

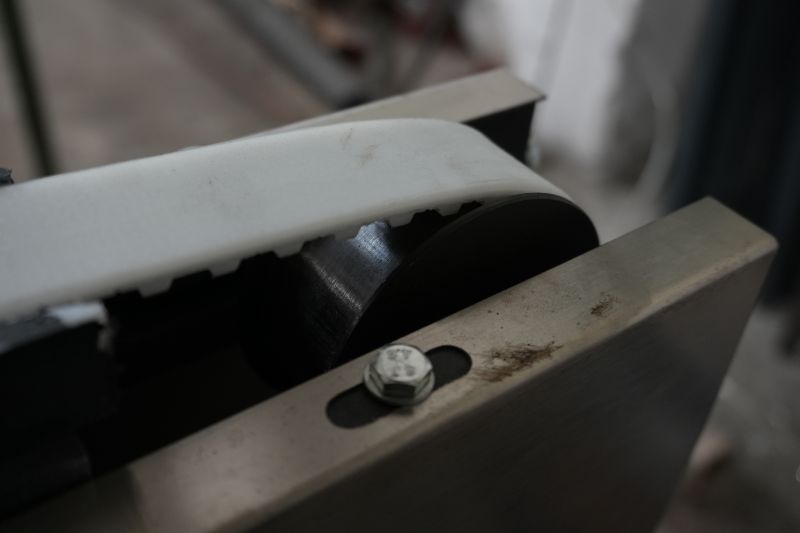

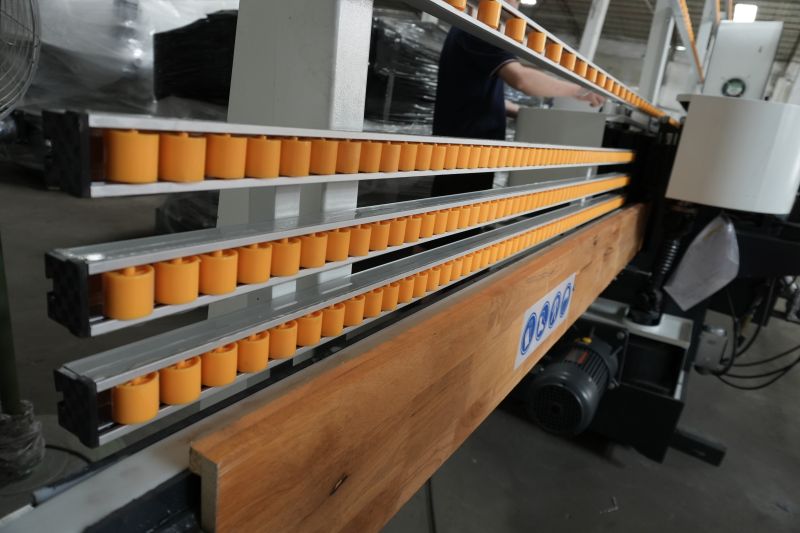

Adopting a thick chain transmission system, it can carry large thick glass weighing up to 600kg. The beveling machine is equipped with a synchronous belt PU chain transmission system to ensure synchronization and stability during the machining process, and improve machining accuracy.

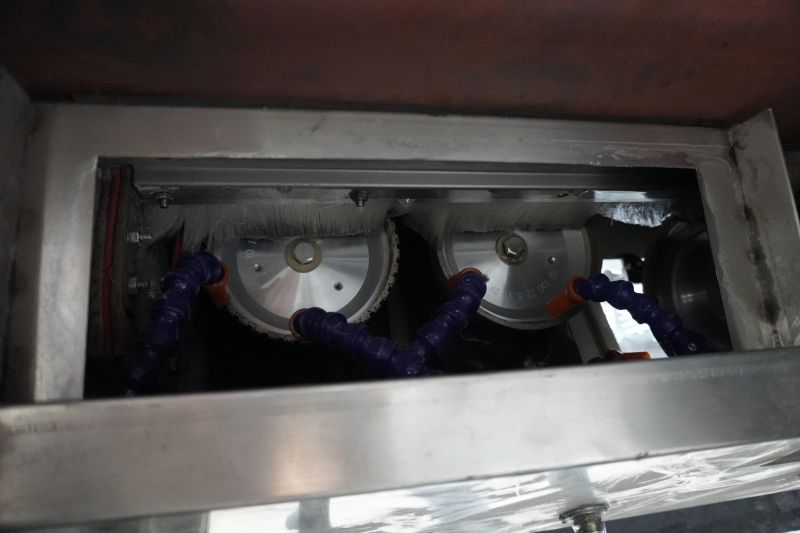

5. Diversified selection of grinding wheels:

Equipped with various high-quality imported grinding wheels, suitable for grinding various types of glass such as mirror, mosaic, splicing, Low-e glass, float glass, laminated glass, tempered glass, etc. There are various choices of grinding wheels that can meet different glass materials and processing needs.

6. Efficient processing performance:

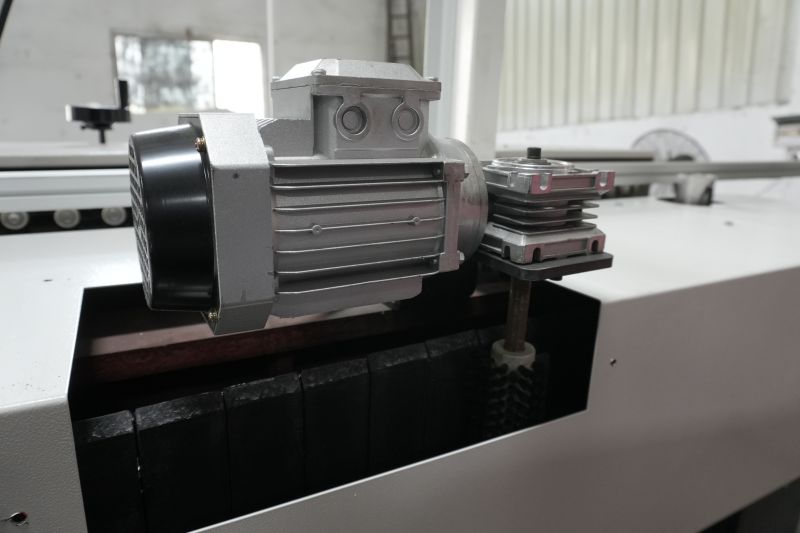

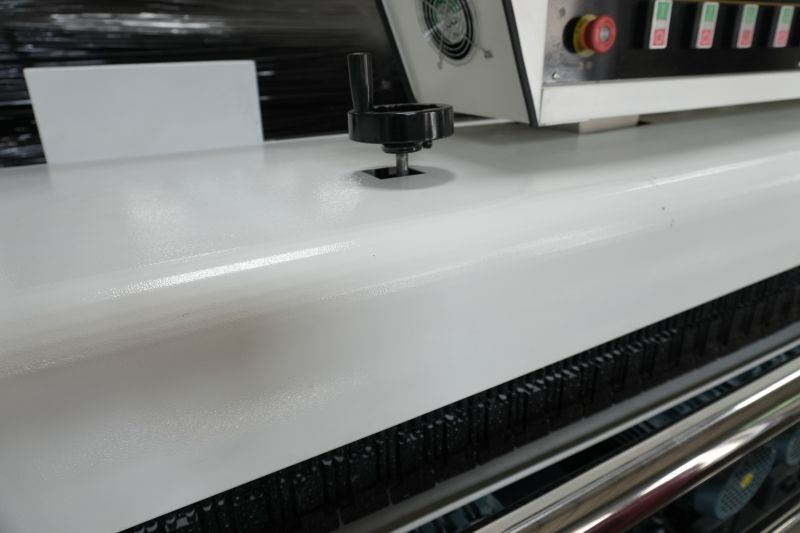

The front pressure plate can be adjusted according to the glass size through a lifting system to adapt to different specifications of glass processing. The pressure plate is made of thicker steel plate, making the machine more sturdy, the transmission more stable, and the working accuracy higher. The working speed can be adjusted freely through a continuously variable transmission mechanism, which is easy to operate and meets the needs of different processing speeds.

Glass Beveling Polishing Machine Application:

1. Flat glass:

Flat glass is the most common type of glass used in construction and home decoration. This glass beveling and polishing machine ensures that the edges of flat glass are extremely smooth and flat through its precise grinding, chamfering and polishing functions. This treatment not only improves the aesthetics of the glass, but also enhances its safety and durability, as the smooth edges reduce the risk of accidental scratches.

2. Flat glass with special edges:

In addition to standard flat glass, this machine can also process glass with special edge designs. Whether it is a straight bevel, a round bottom edge or other complex shapes, the machine can complete the grinding accurately and accurately. This flexibility allows designers to create more unique and creative glass products to meet various customized needs.

3. Mirror glass:

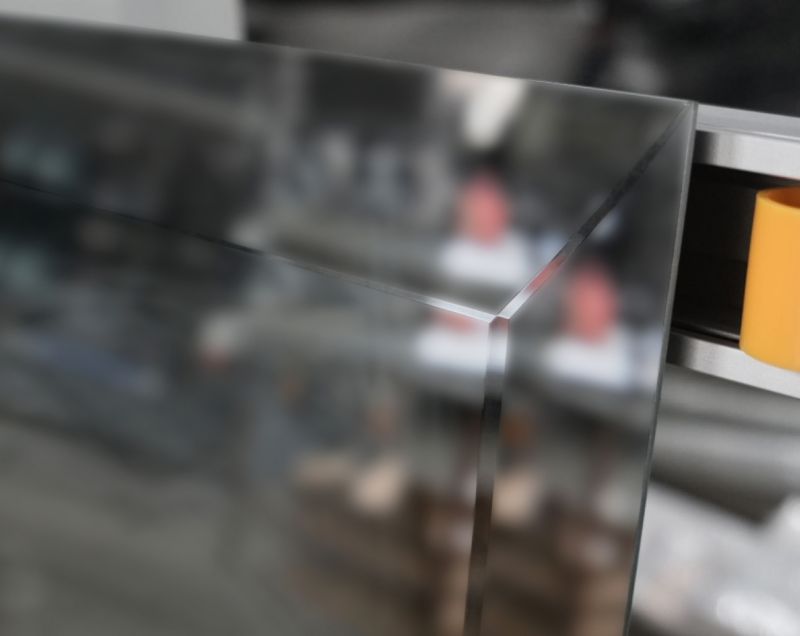

Mirror glass requires extremely high surface finish to reflect a clear image. This polishing machine is equipped with high-quality imported grinding wheels to ensure that the surface of the mirror glass is as smooth as a mirror. Whether it is used for home decoration or commercial places, this high-gloss mirror glass can add a modern and stylish atmosphere.

4. Mosaic glass:

Mosaic glass is usually made of small pieces of glass and is used for wall or floor decoration. Since the edges of mosaic glass need to be very flat to ensure the tightness and beauty of the splicing, this polishing machine can perfectly meet this demand. It can not only grind the edges of the glass quickly and effectively, but also maintain the color and gloss of the glass.

5. Tempered glass:

Tempered glass has been specially treated to have extremely high strength and safety. Even if it is broken, it will not form sharp fragments, but will become harmless small particles. This polishing machine is also suitable for edge processing of tempered glass, which can ensure that the glass maintains its high strength while the edges also meet practical standards.

6. Low-e glass:

Low-e glass is a kind of glass with low-emission characteristics, which is widely used in the construction field to save energy and improve comfort. This polishing machine is also suitable for the edge processing of Low-e glass, which can ensure that the edges of the glass are both beautiful and practical without affecting its low-emission performance.

7. Float glass:

Float glass is a kind of glass with a flat surface and uniform thickness, which is often used in architectural and craft glass products. This polishing machine can efficiently process the edges of float glass, whether it is a straight or curved edge, to achieve extremely high precision and finish. This makes float glass more diverse in decoration and application.

8. Laminated glass:

Laminated glass is made of two or more layers of glass sandwiched together, with excellent safety and sound insulation performance. Since the edges of laminated glass need to be very flat and sealed to ensure the stability and durability of its structure, this polishing machine can meet this high requirement. It can not only accurately grind the edges of the glass, but also ensure a close fit between the interlayers.
